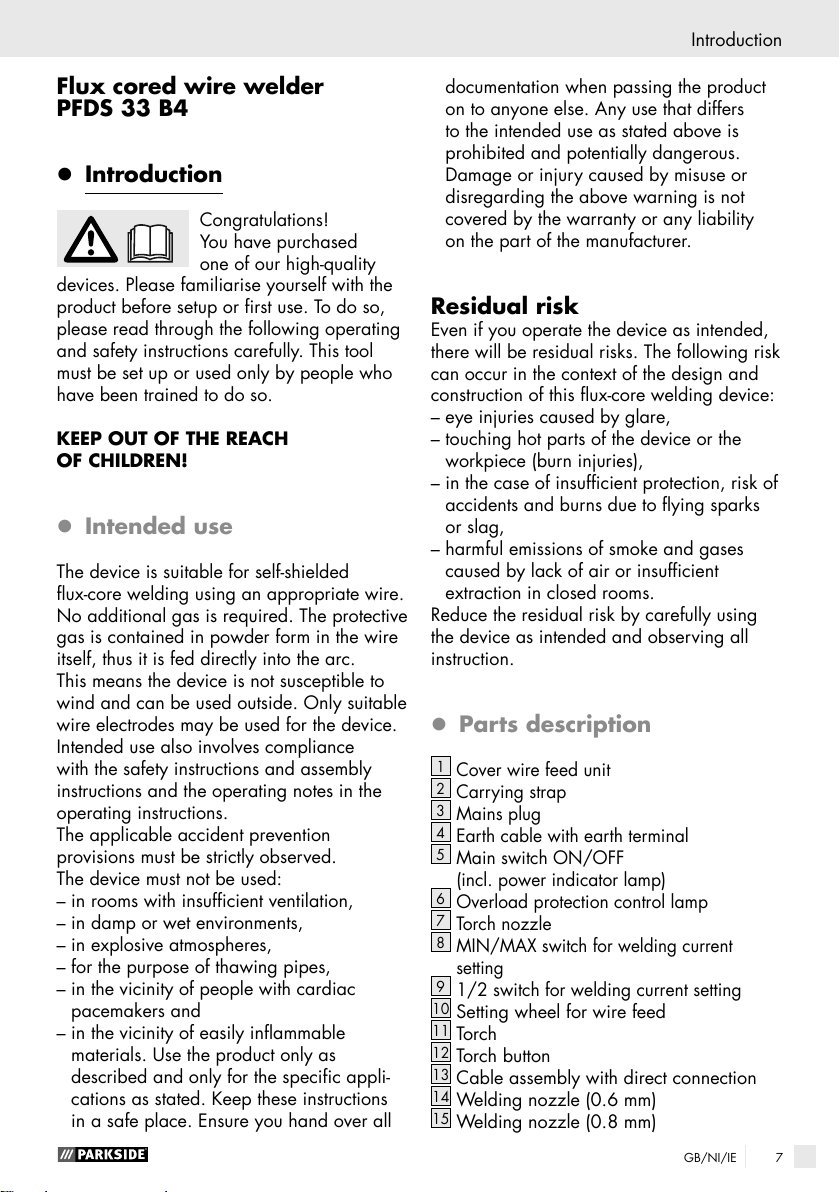

Introduction

Flux cored wire welder

PFDS 33 B4

z Introduction

Congratulations!

You have purchased

one of our high-quality

devices. Please familiarise yourself with the

product before setup or first use. To do so,

please read through the following operating

and safety instructions carefully. This tool

must be set up or used only by people who

have been trained to do so.

KEEP OUT OF THE REACH

OF CHILDREN!

z Intended use

The device is suitable for self-shielded

flux-core welding using an appropriate wire.

No additional gas is required. The protective

gas is contained in powder form in the wire

itself, thus it is fed directly into the arc.

This means the device is not susceptible to

wind and can be used outside. Only suitable

wire electrodes may be used for the device.

Intended use also involves compliance

with the safety instructions and assembly

instructions and the operating notes in the

operating instructions.

The applicable accident prevention

provisions must be strictly observed.

The device must not be used:

– in rooms with insufficient ventilation,

– in damp or wet environments,

– in explosive atmospheres,

– for the purpose of thawing pipes,

– in the vicinity of people with cardiac

pacemakers and

– in the vicinity of easily inflammable

materials. Use the product only as

described and only for the specific appli-

cations as stated. Keep these instructions

in a safe place. Ensure you hand over all

documentation when passing the product

on to anyone else. Any use that differs

to the intended use as stated above is

prohibited and potentially dangerous.

Damage or injury caused by misuse or

disregarding the above warning is not

covered by the warranty or any liability

on the part of the manufacturer.

Residual risk

Even if you operate the device as intended,

there will be residual risks. The following risk

can occur in the context of the design and

construction of this flux-core welding device:

– eye injuries caused by glare,

– touching hot parts of the device or the

workpiece (burn injuries),

– in the case of insufficient protection, risk of

accidents and burns due to flying sparks

or slag,

– harmful emissions of smoke and gases

caused by lack of air or insufficient

extraction in closed rooms.

Reduce the residual risk by carefully using

the device as intended and observing all

instruction.

z Parts description

1

Cover wire feed unit

2

Carrying strap

3

Mains plug

4

Earth cable with earth terminal

5

Main switch ON/OFF

(incl. power indicator lamp)

6

Overload protection control lamp

7

Torch nozzle

8

MIN/MAX switch for welding current

setting

9

1/2 switch for welding current setting

10

Setting wheel for wire feed

11

Torch

12

Torch button

13

Cable assembly with direct connection

14

Welding nozzle (0.6 mm)

15

Welding nozzle (0.8 mm)
